Ascendo The 16 Sub Active
Specifications (selection)

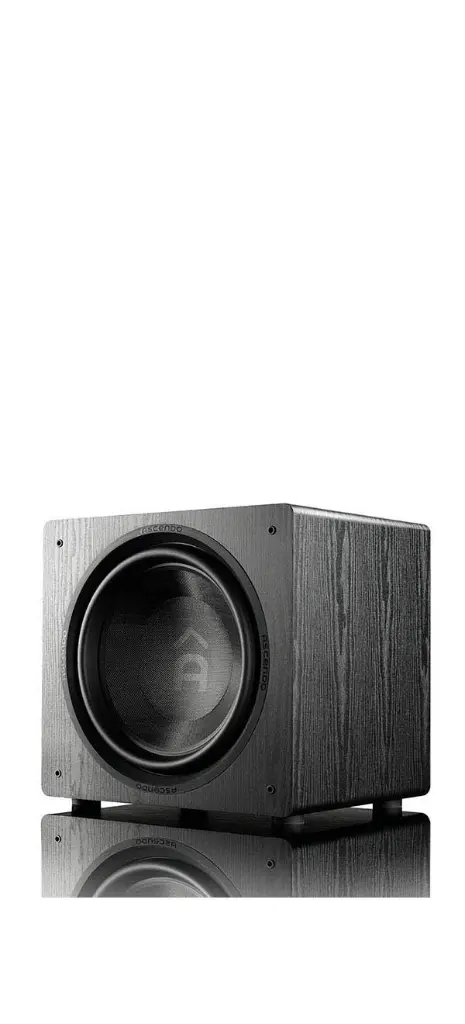

Speaker type | 16" forward-firing compositive cone woofer, 3" voice coil |
Xmax | 20 mm Xmax excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field |
Passive | Active | ACTIVE, Amplifer (Class D) |
Principle | SEALED |
SPL (Peak / half space 2pi) | Measured Data 125 dB |
Frequency range | Measured Data CEA2010B 20 Hz - 150 Hz |
Directivity horizontal x vertical in Deg° | 360° |
Output power | 1000 W |
Power voltage range | 110 V or 220 V / switchable |
Input sensivity RCA | 100mV / 22 KΩ |
Input sensitivity XLR Balanced | 150mV / 47k |

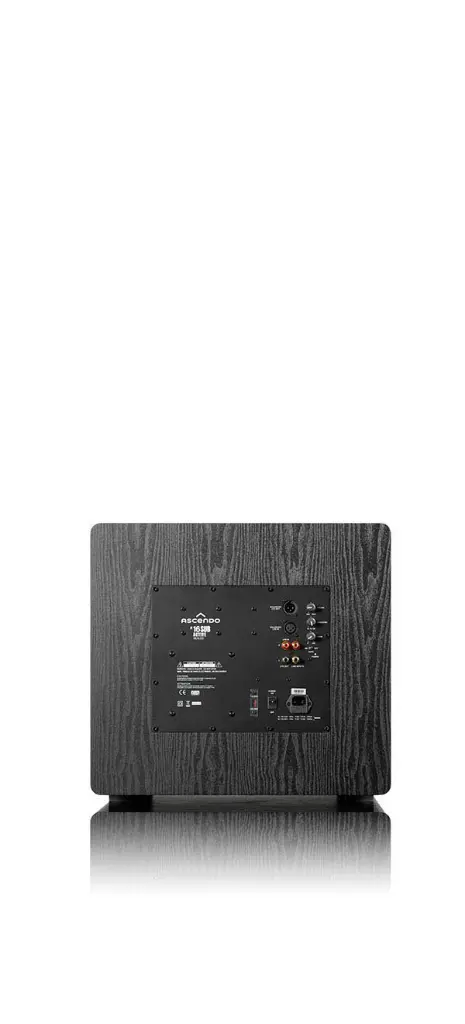

LFE input | 1 x XLR balanced full range no crossover applied |
Line level input | 2 x RCA summing / unbalanced |
LFE output | 1 x XLR balanced |
Line level output | 2 x RCA / unbalanced |
Features | LP crossover 50 Hz to 150 Hz variable, phase 0° - 180°, volume control, auto turn on/off |
Protection features | Therminal protection |
Enclosure | Internally braced medium density fiber-board (MDF) |
Width | 20,47 " | 520 mm |
Height | 18,50 " | 470 mm |
Height with feet | 19,09 " | 485 mm |
Depth without grill | 16,54 " | 420 mm |
Depth with plug | 18,90 " | 480 mm |
Weight | 102,51 lbs | 46,5 kg |
Grille | Black acoustic fabric |
Finish | Black ash |
Custom colour options | Piano lacquer, colour of choice, matt or other finishes upon request |
Shape customization | Upon request |
Mounting | Floor standing with feet |
The16 SUB ACTIVE SEALED is supplied with a front cover as standard
